Metasys® Building Automation Graphics
Enhance Your Building Control through High Quality Graphics

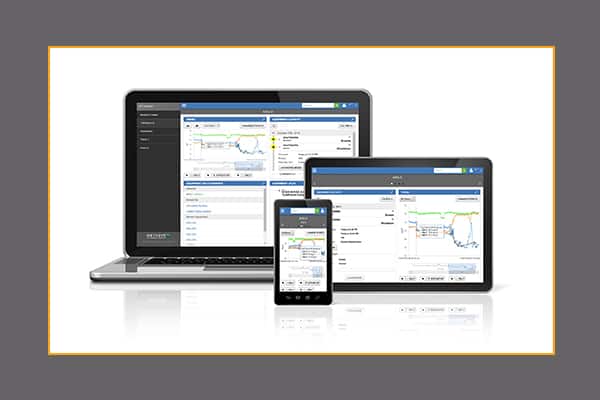

At Johnson Controls, the evolution of Metasys® continues to spur the evolution of our graphics. We currently offer graphics in three formats: standard graphics, advanced graphics, and Graphics+. Standard Graphics is the default package used to design graphics in a scalable, vector-based format. Our Advanced Graphics Application is for more advanced graphics, like those with animation and changing colors. Graphics+ graphics are designed with the Graphic Generation Tool (GGT) – a powerful diagraming tool that helps designers create compelling representations and bind them to data objects.
Features and Benefits
- Thermographic Display of Temperature Conditions of a Floor – Summarizes in a glance the status of the monitored space. Specific colors, customizable by the user, convey each status.
- Easy and Consistent Access to Room Information – Provides information critical to controlling a space in a single graphical window. View information without ever leaving the floor plan graphic.
- Summary Data of Multiple Buildings in a Single Graphical View with Navigational Aids – Lets you easily assess the status of the entire complex, with the ability to investigate specific buildings or floors in need of attention.
- Ability to Quickly and Easily Switch from Tabular to Graphical Views – Satisfies the viewing preferences of any user. The graphic view lets you send commands to a specific zone or room, while the tabular view lets you send global commands to an entire floor.
- Stand-Alone Graphic Generation Tool – Lets users create graphics offline using an archive database, or online when connected to the Metasys® Site Director. Saving and opening a graphic is a seamless process. Graphic elements are bound directly to Metasys items.
- Extensive Library of Prebuilt Dynamic Symbols and Templates – Enables fast and cost-effective graphic development and implementation using a set of dynamic elements and templates in a contemporary, photorealistic design.
- Dynamic Symbol Capabilities, Including Commanding, Flashing, Changing Color, Showing and Hiding Elements, Navigation, and Context Menus, for Enhanced User Experience – Provide the ability to create dynamic building data representations using a rich set of effects in order to communicate more information in the same amount of space on a graphic.
- HVAC Library Elements Pre-Populated with Aliased Binding Strings – Improves productivity for creating graphics when standard naming conventions are used. Any Metasys item defined in the database can be bound to a graphic element.
- Historical Trend Information Available Directly within a Graphic – Allows a faster and more complete diagnosis of building and system conditions.
- Computer Aided Drafting (CAD) File Import Capability – Provides an automated method of importing and converting industry-standard building elevation and floor plan files for use in graphics.
- Right-Click Functions, Short-Cut Keys, and User-Configurable Symbols Properties – Reduce the number of mouse clicks required for some of the simple operations in assembling high-quality graphics.
- Comprehensive Representation of Facility Support Systems – Allows building operators to easily monitor the condition of the facility using a real-world, intuitive interface.
- Multiple Language Support – Enables the sale of the product to many different markets throughout the world.
- Optimal Graphics Display Performance – Allows users to view data-linked equipment and floor plan graphics within seconds in the Site Management Portal (SMP) and the Ready Access Portal.
